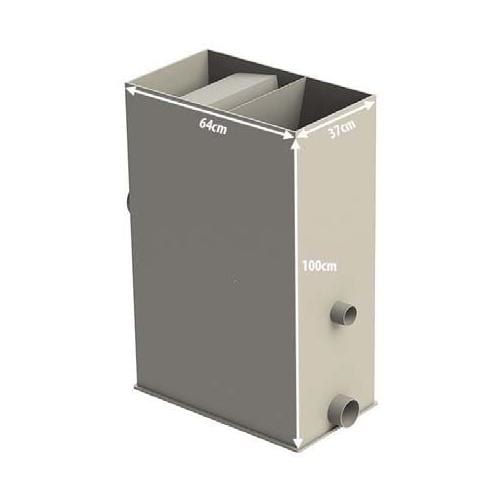

AquaForte Econosieve 300µm - Grid filter

AquaforteSKU: SK230
No reviews

Price:
Sale price€1.199,00

Tax included Shipping calculated at checkout

Description

It's back! Simple gravity grid filter at a very affordable price! The float rod exerts pressure on a perpendicular plate to regulate the flow of water. Equipped with 2 x 110 mm inlets, a Ø90 mm pump connection with Ø63 mm suction tube. Ø63 mm dirt discharge with a 50 mm guillotine valve. With a 300 micron grid filter.
How it works: Water and dirt particles enter at A and rise until they fall over the wall (B). The water then flows through the grid filter (C). As the dirt accumulates, it falls further and further to the bottom, where it ends up in a drain section (D). The drain has a Valterra slide valve (E) to easily flush the dirt with water. If the water below the grid filter in the collection container is not drained quickly enough, the level rises and causes the float (F) to rise. The float is connected to a tube that tilts the regulating valve (G) so that the passage for the water becomes smaller in order to slow down the water supply. The pump is connected at H. No air is sucked in thanks to the suction tube (H). An additional important advantage of this type of filter is that the water is enriched with oxygen as it passes through the grid filter, which is beneficial for the biological filter placed downstream of the EconoSieve.
Dirt evacuation The EconoSieve is equipped as standard with a 63 mm dirt evacuation which can be connected to the Valterra 50 mm slide valve with the flexible sleeve supplied in order to easily flush out dirt.
